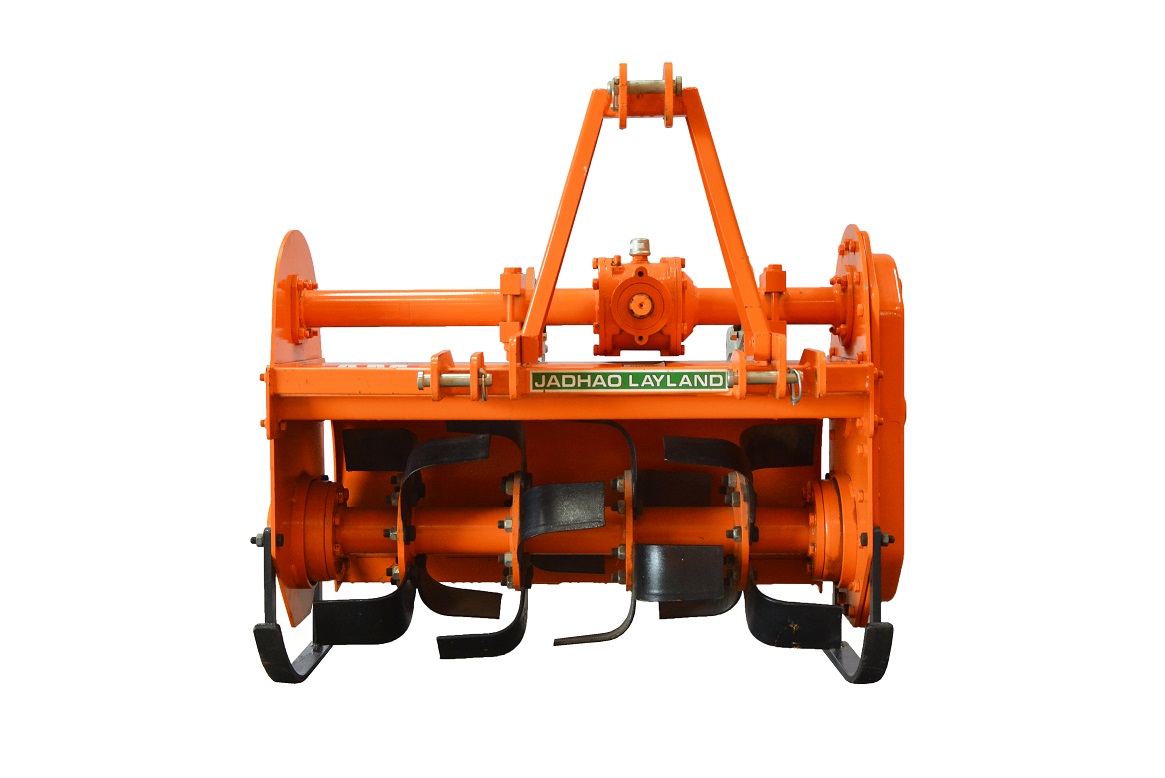

ROTAVATOR AM900

Rotavator is the most advanced & highlighted agro engineering product of JADHAO FALC. The developed version of Rotavator is taken for commercial production supported by international technology collaboration expertise with skilled engineering of highest standards.

JADHAO FALC highly recommends this model for Land Tillage in Grape Vineyards & Fruit Orchards & Horticulture purposes. This model is aptly suitable for lower HP Tractor models ranging from 15 HP - 25 HP. Convenient to operate, Optimum Weight to manouvere & facilitate good quality tillage with better fuel efficiency & minimal weight on Tractor. Suitable for all types of Soil.



TECHNICAL FEATURES & VALUE ADDITIONS

The Rotavators are used to pulverise & refine the Soil so to prepare it for Sowing purpose with varied operations like Ploughing, Clod Braking, Soil Aeration, Leveling are done simultaneously.

Ratoon crop roots are chopped and churned to get mixed completely in the soil, which further gets converted into rich organic fertilizer providing nutrients to the soil & crop. It also controls weed development.

Useful for Inter Cultivation, Paddy Puddling.* (Only Puddler Jadhao Falc Rotavator CME models recommended)

Maintenance Expenditure on Tractors is saved by approximate 15-25%, Labour outflow viz: Manhours / Time is saved by approximate 60 to 64% and Fuel savings by 15-18% on an annual term basis.*

JADHAO FALC Rotavator Ownership cost can be recovered within two seasons (approximate 600 Hours) if used as per directions given by Company

Soil moisture can be used for next crop due to short duration and economical operations.

Supported by Technical Expertise with skilled Engineering Service Standards.

Network available across Indian States. For few untapped locations, dealership inquiries is solicited.


TECHNICAL SPECIFICATIONS

Rotavator Model Length Meter INNER L mm MINI TRACTOR POWER (HP) NO. OF BLADES P.T.O SPEED
AM 900 0.9 Meter 884 15 - 25 16 540
DRIVE MACHINE WEIGHT excluding Cardan Shaft in Kg. MACHINE WEIGHT of Cardan Shaft in Kg. MACHINE WEIGHT with Cardan Shaft in Kg. ROTOR SPEED (RPM)
Gear Drive 189 Kg. 9 Kg. 198 Kg. Single Speed
