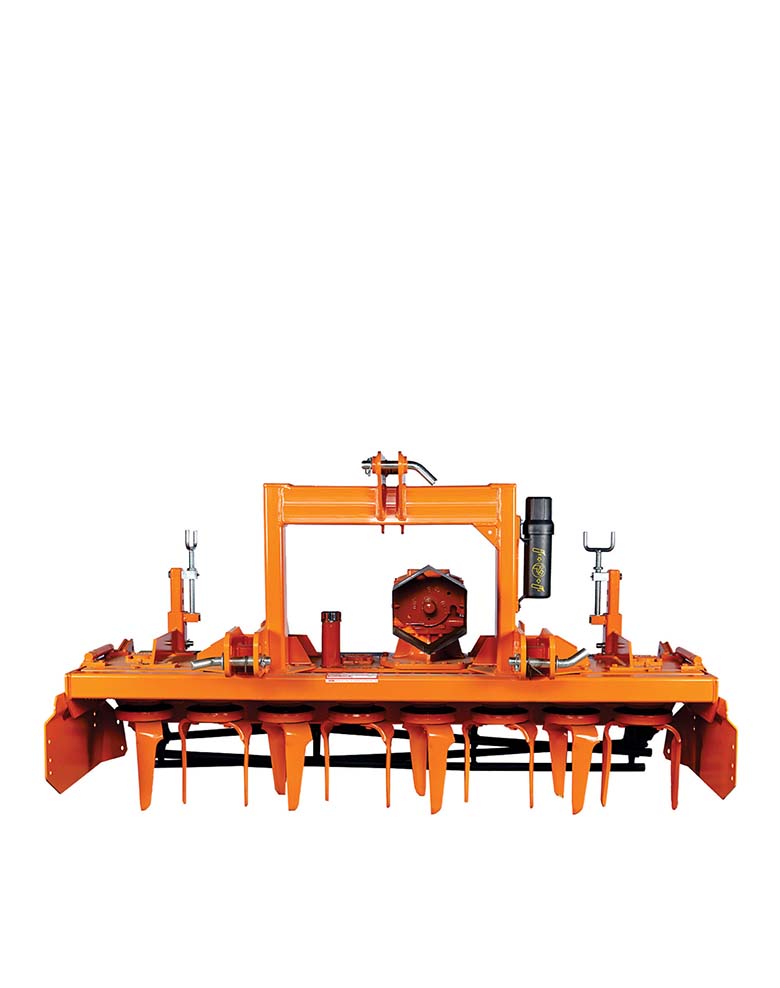

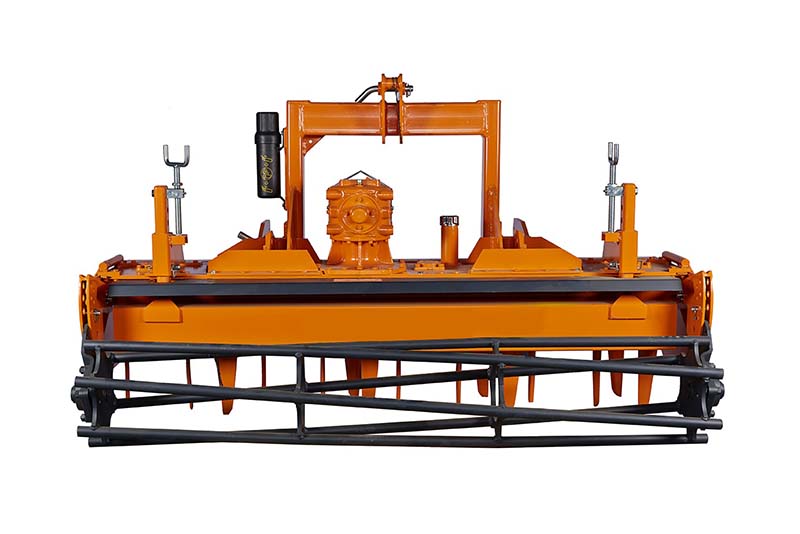

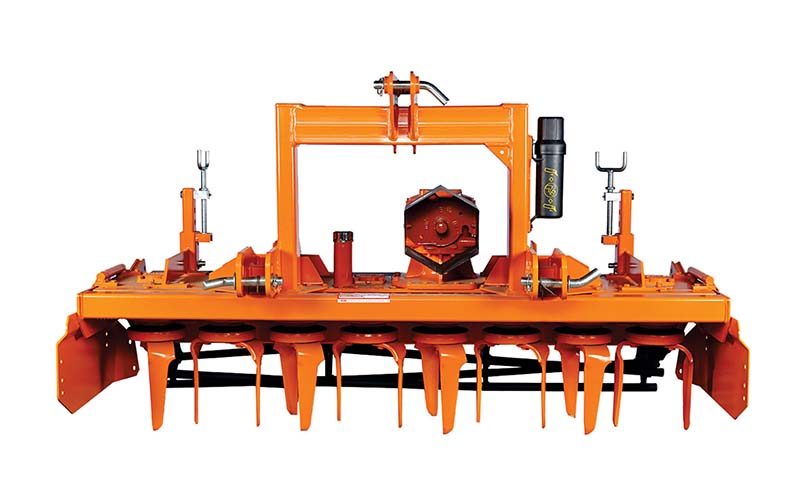

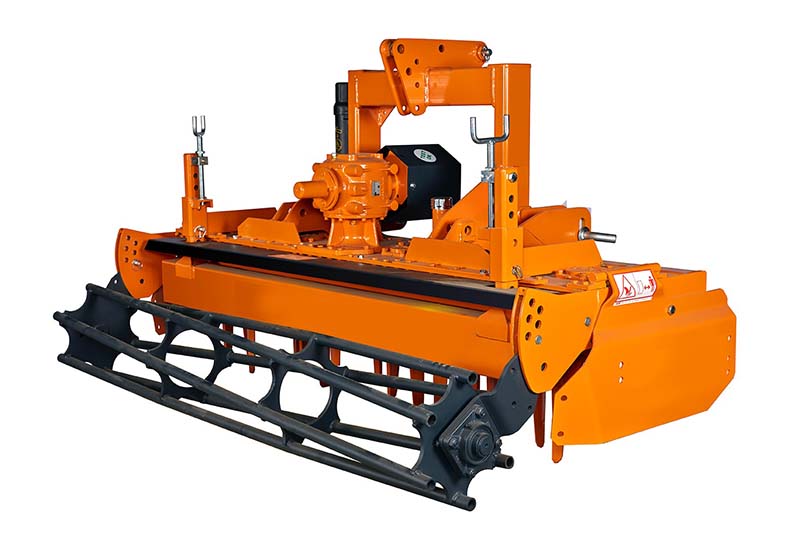

POWER HARROW JL FOX PH 1500
It is a very strong and sturdy tractor mounted harrowing machine. There are four models of power harrows having widths varying from 2 to 3 meters. It finely pulverizes the soil, so well and makes seedbed and ideal favourable to achieve maximum germination percentage.
• The eradicator tines attached to machine remove the compact soil left by tractor's wheels.
• The rear clod bar provides finer and leveled sowing bed.
• It has folding size deflectors to reduce the maximum width , when required.
• Has a facility for hydraulic up and over linkage for sowing machine.
• It has very strong blades with high resistance to the knocks and to the wear and tear
TECHNICAL SPECIFICATIONS
POWER HARROW MODEL | Length Meter | INNER L mm | MINI TRACTOR POWER (HP) | NO. OF BLADES | P.T.O SPEED |
---|---|---|---|---|---|
JL FOX PH1500 | 1.5 Meter | 1560 | 55 | 12 | 540 |
DRIVE | MACHINE WEIGHT excluding Cardan Shaft in Kg. | MACHINE WEIGHT of Cardan Shaft in Kg. | MACHINE WEIGHT with Cardan Shaft in Kg. |
---|---|---|---|
Gear Drive | 588 Kg. | 21 Kg. | 609 Kg. |
