USP of Series :
- Optional Auger Extension: Enables increased hole depth for deeper digging needs.
- Versatile Auger Sizes: Available in diameters of 8″, 16″, 20″, and 24″, each featuring a 6mm thick wear-resistant plate for extended durability.
Replaceable Auger Center Drill:
- Earth Drill: Ideal for normal to medium soil.
- Tungsten Drill: Engineered for medium to hard soil conditions.
- User-Friendly Installation: Easy mounting on tractors and quick replacement of the auger.
- High-Thickness Auger Flight: Designed for durability and optimal performance.
- Boron Steel Cutter Blades: Replaceable auger cutter blades crafted from boron steel for superior cutting efficiency.

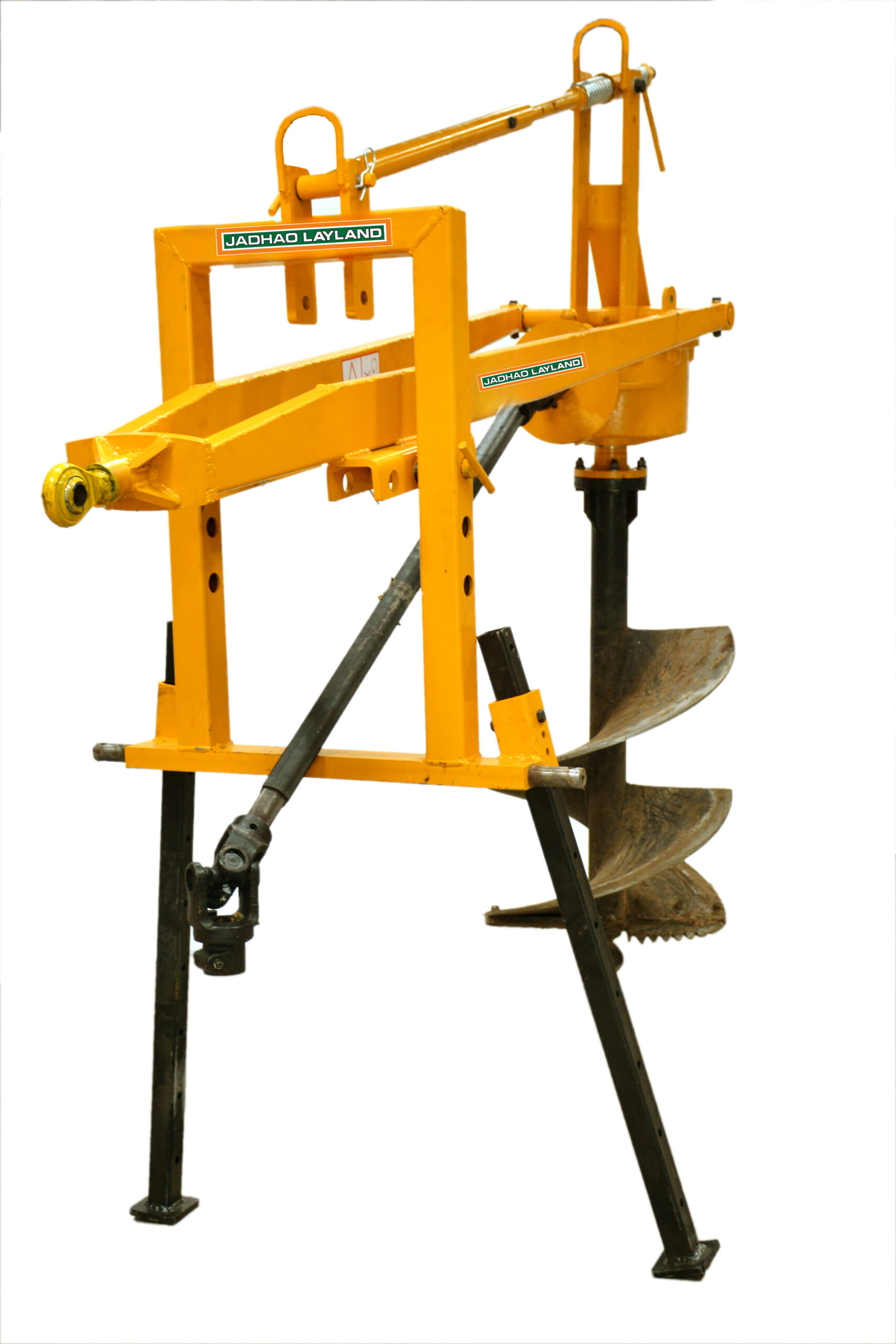

- Post Hole Digger Specifications: Provides a working depth upto 35” into the soil.
- Boron Steel Auger Tip: The auger point tip, made of boron steel, ensures smooth penetration even in hard soil.
- Robust Gearbox: Sturdy, heavy-duty, and highly efficient single-speed gearbox designed for minimal maintenance and reduced repair costs.
- Advanced Anti-Clogging Technology: Utilizes cutting-edge engineering to prevent clogging, leading to fuel and maintenance savings on both tractor and implement.
- Time-Saving Performance: Digs holes quickly, significantly reducing time and labor-intensive work.
- Superior Double Paint Technology: Anti-corrosive PU paint ensures long-lasting protection and durability.
- Inbuilt Mechanical Reverse Mechanism: Facilitates easy extraction of the auger in case of clogging.
- Safety Features: Equipped with a safety cover on the gearbox and PTO drive shaft to protect the operator from moving parts.
- Shocker Assembly: Integrated to control oscillations during operation.
- Heavy-Duty Frame: Rugged tubular frame structure built to withstand high shocks and pressure.
- Optimized Design: The structure is engineered for easy and quick attachment to tractors and transportation, with an optional attachment for a parking stand.
| Technical Specification : | |
| Model | JS SERIES 80.130 MR |
| Input (RPM) | 540 |
| Augar (RPM) | 147 |
| Types Of Augar | |
| Augar Size (Inch) | 8″,12″,16″,20″,24″ |
| HP | 45-90 |
| Max Depth Of Hole (mm) | 900 |
| Digger Weight (KG) | 186 |
| Drill Dimeter (mm) | 8″,12″,16″,20″,24″ |
| Augar Weight (Kg) | 16,32,44,48,59 |
| Gross Weight (Kg) |
202-245 |
