USP of Series :

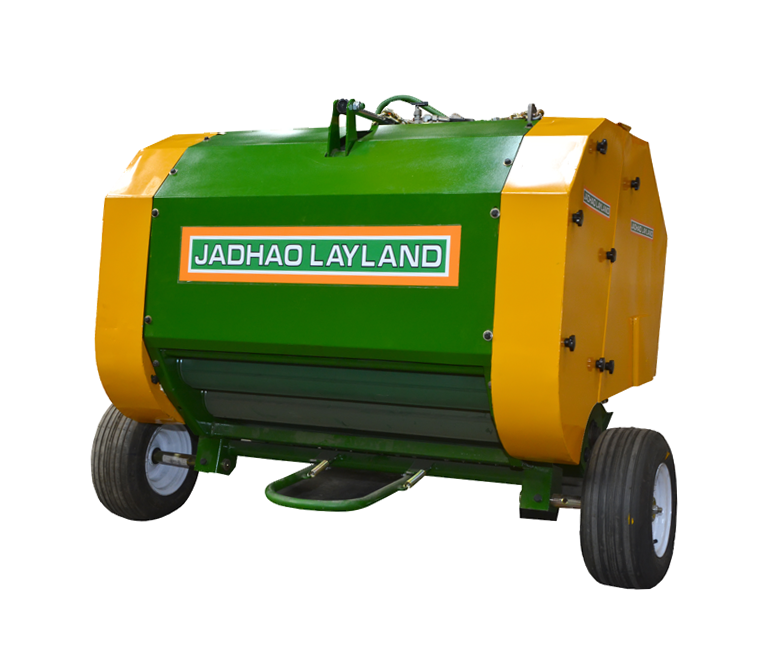

Compact and Versatile Baler
This lightweight baler, featuring a fixed chamber and alternative feeder, is designed for ease of use and maintenance. It’s ideally suited for low-power tractors, and its compact size and low center of gravity make it perfect for operation even in hilly or uneven terrains.
Efficient Straw Management for Environmental Protection
By simplifying the labor-intensive task of straw management, this baler offers an effective solution to reduce pollution and prevent soil damage caused by straw burning.
Multi-Crop Capability
Capable of baling various types of residues, including stalks, straw, hay, and silage, this machine is effective for rice, wheat, and sugarcane remnants.
Enhanced Features for Efficient Operation
- Wide Pickup Mechanism:A 2-meter wide pickup with 4-bar, closely spaced 120 steel tines ensures maximum collection efficiency from windrows.
- Density Control Unit:Provides easy control over bale density during field operations, allowing for optimal performance.
- Binding Mechanism:Equipped with a twine binding system, the number of binds can be easily adjusted between 9 to 13 times, offering flexibility to suit various needs.
- Tail Gate Safety Lock:Safely holds the tailgate during service and maintenance to prevent accidents.Secures the tailgate during field operations to maintain safety and prevent mishaps.
- Bale Chamber:Features 18 rollers with heavy-duty ribs to provide superior traction and compression during operation.Consistently compresses straw to produce high-quality, dense bales.
- Auto Lubrication System:Covers 11 chain points with an oil capacity of 1.5 liters.Oil flow can be regulated by adjusting the piston travel.The system activates automatically each time the tailgate closes, ensuring trouble-free operation.
- Electronic Display Controller:The control unit gives the operator full access to all critical functions, including bale density adjustment, auto binding, cutting device control, and RPM monitoring.
- Bale Completion Indicator:The baler is equipped with electronic buzzers that signal when the bale is complete, streamlining the baling process.
| Technical Specification : | |
| Model | S.R.H.P 9360 |
| Bale Length (cm) | 93 |
| Bale diameter (CM) | 60 |
| Bale Weight (KG) | 28-32 |
| No. Of Rollers | 12 |
| Bales / Hours | 40-100 |
